316 Stainless Steel vs 316L Stainless Steel: What's the Difference?
MetalNow · October 15, 2026
The difference between 316 and 316L comes down to about five hundredths of a percent of carbon. For most parts, that makes no difference at all. For a few, it's the difference between a weld that lasts and one that corrodes along the seam.
The trouble is that nobody can tell the two apart by looking, and the price is often close, so people either pick one out of habit or assume the "L" means better. It doesn't. It means something specific, and it matters in specific situations. Here's what the letter stands for, when it counts, and when you can ignore it.
Quick answer: 316 and 316L are the same molybdenum-bearing stainless steel except for carbon. 316L caps carbon at 0.03 percent, while 316 allows up to about 0.08 percent. The lower carbon protects welds from losing their corrosion resistance. Choose 316L for welded assemblies in corrosive service, especially heavier sections. For machined, non-welded parts, either works, and a lot of bar on the market is certified to both.
What 316 and 316L have in common
Both are austenitic stainless steels, built on the same chromium-nickel base as 304. What sets the 316 family apart from 304 is molybdenum, about 2 to 3 percent, which improves resistance to pitting and crevice corrosion, especially from chlorides like salt and cleaning chemicals.

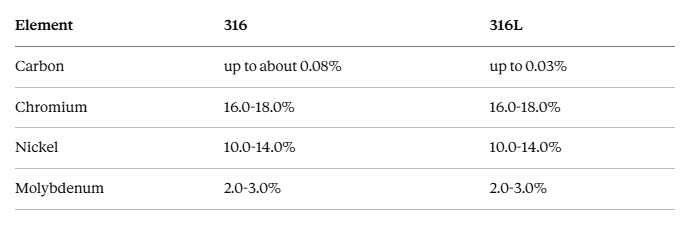

Those ranges are typical for common bar specifications. Exact limits vary a little by product form and standard, so the mill cert is the final word.
That's why both show up in the same places: food and beverage equipment, marine hardware, chemical and pharmaceutical processing, and anywhere a part meets moisture, salt, or aggressive cleaners. If you're trying to decide between 316 and 304 in the first place, our 303 vs 304 guide covers the 304 side of the family.
What the "L" actually protects against
Here's the problem the "L" is solving. Stainless steel resists corrosion because of the chromium in it. When the steel is held in roughly the 800 to 1,500°F range, carbon in the metal can pull chromium out of solution and form chromium carbides at the grain boundaries. This is called sensitization. The areas right next to those boundaries are left short on chromium, so they no longer protect themselves.
Welding creates exactly that situation. As the weld cools, a band of metal beside it spends time in that temperature range. In a corrosive environment, that band can corrode along the grain boundaries while the rest of the part looks fine. It's often called weld decay.
Less carbon means less carbide, which means less trouble. That's all the L does. It doesn't make the steel more corrosion resistant in general. It makes it more reliable after welding without a full anneal afterward.
There are three ways to deal with it: use a low-carbon grade like 316L, anneal the part after welding, or use a stabilized grade. For most shops, picking 316L is the easiest.

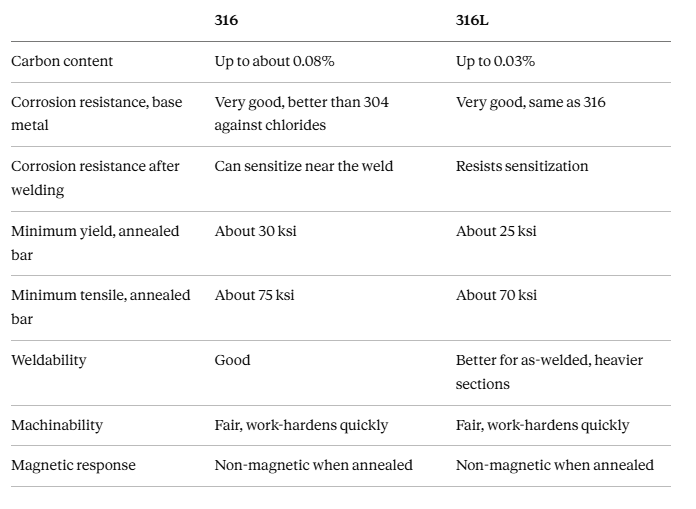

Key properties at a glance
The strength minimums are the published floors. Real bar often comes in well above them, which is part of why dual certification is so common. It's covered in the buying section below.
When 316 is the right call
The part isn't welded. For machined parts like shafts, fittings, and fasteners, the sensitization issue never comes up. Regular 316 gives you the same corrosion resistance with slightly higher minimum strength.
The part is welded, but thin or annealed afterward. In thin sections, the weld cools quickly and spends little time in the danger range. If the whole assembly gets solution annealed after welding, the issue goes away.
The environment is only mildly corrosive. Where the service is mild, the difference between 316 and 316L rarely shows up in practice.
When 316L is the right call
The assembly is welded and won't be annealed. This is the main reason the grade exists. Tanks, piping, and frames that get welded and put into service as-welded are the standard use.
The sections are heavy. Thicker material holds heat longer, so the weld zone spends more time in the sensitization range.
The service is corrosive. Food and beverage, pharmaceutical, chemical, and marine environments are where a sensitized weld zone can actually fail.
A spec calls for it. Many drawings and standards specify 316L by name, particularly in sanitary and process work. If the drawing says L, that's the answer.
How to tell them apart without a spec sheet
You can't, at least not reliably in the shop.
Looking and feeling won't work. They're visually identical.
A spark test isn't useful here. Both grades give similar results.
A magnet won't help. Both are non-magnetic when annealed.
A molybdenum spot test can separate 316 from 304, but it can't separate 316 from 316L.
Handheld analyzers usually can't measure carbon well. Most can read the molybdenum but not the carbon number that defines the L.
That leaves the mill cert. The carbon figure on the cert is the only practical way to know which one you have. Our guide to reading a mill certificate shows where to find it.
The "dual-certified" detail most people miss
A lot of 316 stainless sold in bar and plate is dual-certified as 316/316L. That means the material has carbon low enough to meet the 316L limit and strength high enough to meet the 316 minimums, so one piece of steel satisfies both specs.
For you, that means the choice may be easier than it looks. If your job calls for either grade, dual-certified material covers both. If a drawing calls for 316L specifically, check that the cert shows carbon at 0.03 percent or below.

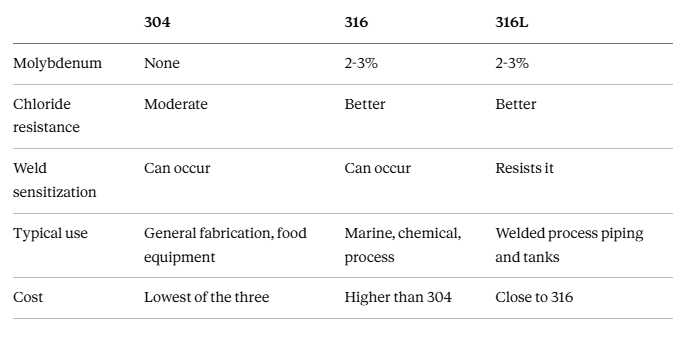

316 vs 316L vs 304
If you're choosing between 304 and 316, the question is chlorides. For salt, coastal air, or harsh cleaning chemicals, the molybdenum is worth the extra cost. For general indoor fabrication, 304 is often enough. You can buy 304 stainless steel online if that's where you land.
Buying 316 or 316L: what to check before you order
The carbon on the cert. Look for 0.03 percent or below if you need the L, and check for dual certification.
Condition. Annealed is the usual condition for bar. Cold-worked bar is stronger but behaves differently when welded and machined.
Form and finish. Round bar, plate, and sheet all come in different finishes. Pick the one that suits the part.
Machining allowance. Both grades work-harden quickly, so plan for sharp tooling, steady feeds, and enough stock to cut through the hardened skin.
Heat number. Make sure the cert matches the heat number on your material.
A remnant of either grade carries the same chemistry as a full-length piece, just shorter. That makes remnants a good fit for prototypes, fittings, and one-off parts. We ship nationwide, and you can see how shipping works before you order.
Brose Stainless Steel Remnants
The mistakes we see most often
Paying extra for 316L on a part that's never welded. It does nothing for a machined shaft. Check whether dual-certified material is available first.
Assuming 316L is more corrosion resistant. The base metal is the same. The L protects the weld zone, not the whole part.
Using 316 in a heavy, as-welded assembly in corrosive service. This is the one that causes real failures. If the part is welded and thick, use the L.
Ordering by grade name alone. Without checking the cert, you don't know what carbon level you got.
A quick gut-check before you order
Is the part welded? If no, either grade works, and dual-certified material is the simplest choice.
If it's welded, is it thick or going into corrosive service without a post-weld anneal? If yes, choose 316L.
Does a drawing or spec name 316L? If yes, that's your answer. Check the cert for carbon at 0.03 percent or below.
Do you actually need the molybdenum? If the environment has no chlorides, 304 may do the job for less.
