4130 Steel vs 4140 Steel: Which One Do You Actually Need?
MetalNow ยท September 8, 2026
These two get mixed up constantly, and it's easy to see why. Same numbering family, same general use cases (shafts, tooling, high-stress components), same alloy steel category. But 4130 and 4140 aren't interchangeable, and picking the wrong one usually shows up later, either as a part that's tougher to weld than it needed to be, or one that doesn't hold up the way it should have. Here's the real difference and how to know which one your job actually calls for.
Quick answer: 4130 is a lower carbon chromoly steel valued for excellent weldability and good toughness, commonly used in aircraft tubing, roll cages, and welded structural components. 4140 has higher carbon content, giving it greater strength and better wear resistance after heat treatment, making it the better choice for shafts, gears, and high-stress machined parts. If the part gets welded extensively, lean 4130. If it needs to be heat treated for maximum strength and hardness, lean 4140.
What's actually different between them
Both are chromium-molybdenum ("chromoly") alloy steels, part of the same 41xx family, which is why they get confused so often. The real difference comes down to carbon content, same story as with 1018 vs 1045, just at a higher strength tier.
4130 carries roughly 0.28 to 0.33 percent carbon. That slightly lower carbon content makes it more forgiving to weld, which is exactly why it shows up so often in welded structures like aircraft frames, roll cages, and bicycle frames, applications where the part is built up through welding rather than machined from solid stock.
4140 carries roughly 0.38 to 0.43 percent carbon. That extra carbon unlocks significantly better response to heat treatment, meaning 4140 can be hardened to higher strength and wear resistance than 4130 will ever reach. The tradeoff is that it's less forgiving to weld and more likely to crack without proper preheat and post-weld treatment.
Same alloy family, same chromium-molybdenum backbone, different carbon content, and that difference changes which one actually belongs in your project.

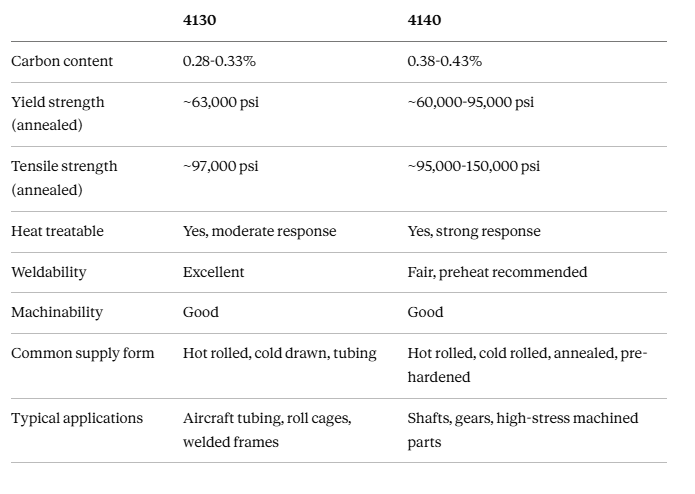

Key properties at a glance
When 4130 is the right call
The part gets welded as part of assembly. This is 4130's defining advantage. Roll cages, aircraft tubing, chassis structures, and welded frames all lean on 4130 specifically because it tolerates welding without the same cracking risk that higher-carbon steels carry.
You need good toughness without maximum hardness. 4130 holds up well under impact and fatigue without needing to be pushed to the highest hardness levels, useful for structural applications where flexibility and crack resistance matter more than raw wear resistance.
Weight matters relative to strength. Because 4130 is often supplied as tubing, it's a common choice where a strong, lightweight structural member is the goal, rather than a solid, heavy shaft.
You want a more forgiving material for your welding procedure. If your shop doesn't have a tightly controlled preheat and post-weld heat treatment process dialed in for alloy steel, 4130 is meaningfully less likely to crack than 4140 under the same conditions.
When 4140 is the right call
The part needs real strength and wear resistance. Shafts, gears, spindles, and high-load fasteners benefit from 4140's ability to be quenched and tempered to much higher hardness than 4130 can reach.
You're machining from solid stock rather than welding an assembly. 4140 is commonly supplied pre-hardened or annealed specifically for machining, and it's a strong fit when the part is built by removing material rather than joining pieces together.
Fatigue resistance under repeated load matters. Rotating shafts and components under cyclical stress hold up better in properly heat-treated 4140 than in 4130, thanks to its higher achievable hardness and strength.
You can accommodate the welding tradeoff. If welding is involved at all, 4140 needs a solid preheat and post-weld procedure to avoid cracking, so it's a better fit when your shop already has that process in place, or when the part is primarily machined rather than welded.
How to tell them apart without a spec sheet
Check the supply form. 4130 is very commonly sold as tubing, since aircraft and structural welding applications favor that shape. 4140 is more commonly sold as round bar, flat bar, and plate, since it's usually machined from solid stock.
Ask about heat treat condition. 4140 is frequently sold pre-hardened (already quenched and tempered to a specific hardness range) since that's how it's most often used. 4130 is more commonly supplied annealed or normalized, ready to be welded and then heat treated afterward if needed.
Spark test, if you're set up for it. 4140's higher carbon content produces a slightly more energetic spark pattern under a grinder than 4130, though the difference between these two is more subtle than something like comparing 1018 to a high carbon steel.
4130 and 4140 vs other common grades
4130 vs 1018: 1018 is a plain low carbon steel with no meaningful heat treat response, chosen purely for machinability and low cost. 4130 costs more but offers real strength and toughness after heat treatment, worth it when the application actually demands alloy-steel performance.
4140 vs 1045: 1045 is a plain medium carbon steel that can be heat treated, but 4140's chromium-molybdenum alloying gives it better hardenability and toughness at the same hardness level, particularly in larger cross-sections where 1045 struggles to harden evenly all the way through.
4130 vs 4140, cost difference: 4140 typically costs a bit more per pound than 4130, reflecting its higher carbon content and the fact that it's frequently sold pre-hardened. For welded structural work where 4130's properties are sufficient, there's no reason to pay the 4140 premium.
Buying 4130 or 4140 as remnants
Both grades show up in remnant inventory, and the same logic applies as with other grade pairs: a remnant carries identical chemistry and mechanical properties to a fresh-cut piece, just in a leftover size.
For 4130 remnants, especially tubing, check wall thickness and diameter carefully against your design, since tubing dimensions matter more precisely than solid bar stock for structural applications.
For 4140 remnants, ask about heat treat condition before you buy. A piece that's already been quenched and tempered to a specific hardness range behaves very differently in machining than an annealed piece, and knowing which one you're getting avoids a frustrating surprise on the mill.
The mistake we see most often
Shops sometimes reach for 4140 out of habit for anything that needs to be "strong," even when the part is primarily welded rather than machined. That leads to cracking issues or extra preheat/post-weld steps that wouldn't have been necessary with 4130 in the first place. The opposite mistake also happens: using 4130 for a high-load shaft that would have benefited from 4140's superior hardenability and wear resistance.
The fix is the same principle that applies across every grade decision: match the material to how the part is actually built and what it actually needs to survive, not to which name sounds tougher.
A quick gut-check before you order
Is this part built primarily through welding, or machined from solid stock? Welded leans 4130, machined leans either way depending on strength needs.
Does it need maximum hardness and wear resistance after heat treatment? If yes, 4140.
Is it a structural, weight-sensitive application like tubing or a frame? If yes, 4130.
Can your shop reliably manage preheat and post-weld treatment for a less forgiving alloy? If not, 4130 is the safer choice wherever welding is involved.
