How to Machine Stainless Steel Without Work-Hardening It
MetalNow · October 22, 2026
If you've machined much stainless, you've seen this. The first pass cuts fine. Then the tool starts squealing, the finish turns to garbage, and a drill that was cutting a second ago won't go any deeper.
You didn't hit a hard spot in the bar. You made one.
That's work-hardening, and it's the main reason stainless has a reputation as a tough material to machine. The good news is that it's mostly preventable, and most of the fix comes down to one rule: keep the tool cutting, and don't let it rub.
Here's why stainless work-hardens, how to spot it early, and what to change in your tooling, feeds, and setup so it stops ruining parts and inserts.
Quick answer: Stainless work-hardens when the tool rubs instead of cutting, which hardens the surface and makes the next pass harder. To prevent it, use sharp positive-rake tooling, keep a real feed, never let the tool dwell, hold the setup rigid, flood the cut with coolant, and keep the load steady. If the part is mostly machined and won't be welded, 303 stainless avoids most of the problem.
What work-hardening is, and why stainless does it
Deform any metal and it gets harder. Austenitic stainless steels like 304 and 316 do it faster, and more, than most.
As the cutting edge pushes through, the material just under it gets squeezed and deformed. In these grades, that can turn part of the soft austenite structure into much harder martensite, especially in 304. The result is a thin, hard skin on the surface you just cut.
That skin only matters if your next cut has to go through it:
A sharp tool taking a real bite gets under the hard layer and cuts soft material. No problem.
A dull tool, a light skim pass, or a tool that rubs never gets under it. It keeps deforming the surface and making it harder with every pass, until you're cutting something much harder than the bar you started with.
Two other traits of stainless make it worse. It conducts heat poorly, so heat builds up at the cutting edge instead of flowing into the part. And it's gummy, so it tends to smear and stick to the tool instead of shearing cleanly.
Heat and rubbing harden the material. Harder material means more heat and rubbing. That loop is what you're trying to break.
Warning signs you're work-hardening the part
Catch these early, before you lose the part or the tool:
Squealing or chirping instead of a steady cutting sound
A glazed, shiny surface where the tool has been rubbing instead of cutting
Torn or smeared finishes, or material welding itself onto the cutting edge
Blue or straw-colored chips or surfaces, which mean too much heat is building at the cut
Long, stringy chips that won't break and wrap around the tool or part
A drill or tap that suddenly stops cutting partway through the hole
Inserts chipping or wearing out much faster than expected
If you see one of these, don't take another light pass to clean it up. That usually makes it worse. Go deeper and push the feed so the tool gets under the hardened layer, or change the tool.
Seven ways to keep stainless from work-hardening
1. Never let the tool rub or dwell. This is the big one. Any time the tool is touching the part but not cutting, it's hardening the surface. That includes dwelling at the bottom of a hole, pausing mid-cut, slowing the feed in a corner, or taking a spring pass. Program the tool to engage, cut, and leave. Climb mill when you can, and ramp or roll into the cut instead of plunging straight down.
2. Use sharp, positive-rake tooling. A sharp, positive-rake edge shears the material with less force and less heat. A dull or negative-rake edge pushes and smears it. Look for carbide grades and chip breakers made for ISO "M" materials, which is the stainless category. PVD coatings like TiAlN or AlTiN handle the heat well. Replace or index tools before they're worn out, because a worn edge on stainless gets bad fast.
3. Feed harder, not lighter. It sounds backward, but light feeds and skim passes are what cause work-hardening. The tool needs a thick enough chip to get under the layer the last pass hardened. Leave enough stock for a real finishing cut instead of a light cleanup pass. If you're moving a program from 303 to 316, back off the speed, not the feed.
4. Slow the surface speed down. Surface speed makes the most heat, and heat drives the problem. Run stainless slower than you'd run carbon steel, and let the feed do the work. 316 generally wants to run slower than 303. Start from your tooling maker's recommendations for the exact grade and tool.
5. Make the setup as rigid as you can. Chatter means the tool bounces in and out of the cut, and every bounce is a moment of rubbing. Keep tool stick-out short, hold the part firmly, and use variable-pitch or variable-helix end mills, which are designed to dampen chatter in gummy materials.
6. Use plenty of coolant, aimed at the cut. Stainless holds heat at the cutting edge, so get coolant right where the chip forms. Flood or high-pressure coolant helps with both cooling and chip control. Through-tool coolant is a big help for drilling and deep pockets.
7. Keep a steady load on the tool. Toolpaths that suddenly increase the cutter's engagement, like full-width slots or sharp corners, spike the heat and the load. Constant-engagement strategies like trochoidal or high-efficiency milling keep chip thickness and temperature steady. If you have to cut a full slot, take a shallow depth and keep the feed up.
Drilling and tapping stainless
Holes are where work-hardening does the most damage, because the tool is buried in the material and the heat has nowhere to go.
Drilling
Use the right drill. A split-point cobalt or carbide drill made for stainless starts without walking, so it doesn't rub before it bites.
Feed steadily and don't stop. Never let the drill dwell at the bottom of the hole or pause mid-hole. If a drill stops cutting partway down, the bottom of the hole has probably work-hardened, and pushing harder with the same drill rarely fixes it.
Peck only to clear chips, not out of habit. Every retract and re-entry is another chance to rub. With through-tool coolant, you can often drill deeper without pecking.
Keep coolant flowing, ideally through the tool.
Tapping
Match the tap to the hole. Spiral-point taps push chips ahead of the tap in through holes. Spiral-flute taps pull chips out of blind holes.
Consider thread-forming taps. Austenitic stainless is ductile enough that form taps often work well, and there are no chips to manage.
Use a slightly larger tap drill if your spec allows it. Going to roughly 65 to 70 percent thread engagement cuts tapping torque and broken taps, with little loss in strength for most applications.
Use a real tapping fluid made for stainless, not just general coolant.
Drill the right size the first time. A second pass, or a dull drill that rubs the wall, hardens the hole before the tap ever starts.
Sometimes the better fix is a different grade
If a part spends most of its life on the lathe or mill and doesn't need to be welded, the easiest way to avoid fighting work-hardening is to start with 303 stainless.
303 is an 18-8 stainless like 304, with at least 0.15 percent sulfur added on purpose. The sulfur forms tiny inclusions that break chips into short pieces and cut friction at the edge. It still work-hardens, but much less, and it runs faster and easier on tools.

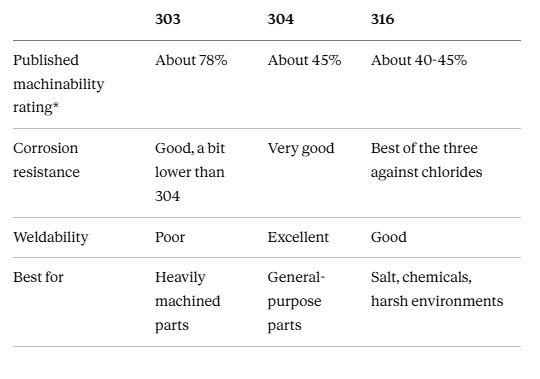

*Percent of a free-machining carbon steel benchmark. Ratings vary by source and condition, so treat them as a rough comparison.
The trade-offs are real:
Lower corrosion resistance. The sulfur makes 303 somewhat less corrosion resistant than 304. It's fine for dry or mildly corrosive service, but not for marine, chemical, or harsh washdown environments.
Not for welding. 303 is difficult to weld and generally not recommended for welded parts.
How to choose:
Choose 303 for heavily machined parts that won't be welded and won't see harsh corrosion, like shafts, bushings, fittings, fasteners, valve parts, and instrument components. Our 303 vs 304 guide goes deeper.
Choose 304 for general-purpose parts that need good corrosion resistance or some welding.
Choose 316 or 316L when the part faces chlorides, salt, or chemicals, or will be welded and then exposed to corrosive conditions. See our guide to 316 vs 316L for help choosing between them.
If the drawing specifies 304 or 316, check with the engineer before swapping to 303. The corrosion and welding differences matter.
Less material to cut means less to go wrong
Every extra pass on stainless is another chance to rub, build heat, and harden the surface. Starting closer to your finished size doesn't eliminate work-hardening, but it cuts down the time the tool spends fighting the material.
That's where ordering cut to size helps. Instead of sawing a 12-foot bar into blanks in your shop, you get pieces already cut to the length you need, ready to go on the machine.
We carry 303, 304, and 316 stainless, cut to your length and shipped nationwide. Pricing is online, so you don't have to wait on a quote, and we don't require large minimums. That makes it easy to order a few pieces for a prototype or enough for a full production run. Remnant pieces are another cheap way to test a setup before you commit to a full order.
Browse Stainless Steel Remnants
The mistakes we see most often
Taking a light cleanup pass. It feels careful, but it rubs on the layer the last pass hardened. Leave enough stock for a real cut instead.
Letting the tool dwell. At the bottom of a hole, in a corner, or between moves. Dwelling hardens the surface in seconds.
Running 316 like 303. 316 is gummier and wants a lower speed and a firm feed. A program that works on 303 won't carry over unchanged.
Pushing a dull tool through. A worn edge on stainless gets worse fast. Swap it early.
Swapping to 303 without checking the drawing. It machines better, but it welds poorly and gives up some corrosion resistance. Confirm with the engineer first.
A quick gut-check before you run the job
Is the tool sharp, positive-rake, and made for stainless? If not, change it first.
Is the feed high enough to cut under the last pass, and is the speed lower than you'd run carbon steel?
Is the setup rigid, with short stick-out and coolant aimed at the cut?
Does the part really need 304 or 316, or would 303 do the job for less trouble?
Speeds and feeds vary with your machine, tooling, and setup. Always start from your tooling manufacturer's recommendations for the specific grade.
Sources
