303 Stainless Steel vs 304 Stainless Steel: What's the Difference?
MetalNow ยท September 23, 2026
Both get called stainless and both look identical sitting next to each other on a shelf, but 303 and 304 are built for different jobs. Grab the wrong one and you'll either end up with a part that's harder to machine than it needed to be, or one that doesn't hold up to the environment where it's needed.
Here's the real difference and how to know which one your project actually needs.
Quick answer: 303 stainless is a free-machining grade with added sulfur, built for parts that get heavily machined, like screws, fittings, precision components, at the cost of somewhat reduced corrosion resistance and weldability. 304 stainless is the more general-purpose grade, better corrosion resistance, better weldability, and it's the default choice for food equipment, tanks, and most fabrication work. If the part is mostly machined, lean 303. If it's welded, formed, or needs maximum corrosion resistance, lean 304.
What's actually different between them
Both 303 and 304 are austenitic stainless steels, meaning they share a similar base chemistry of chromium and nickel that gives stainless steel its corrosion resistance in the first place. The real difference comes down to one deliberate addition.
303 has sulfur added to its composition, typically around 0.15 percent minimum. That sulfur is added on purpose, it creates small manganese sulfide inclusions throughout the material that act like built-in chip breakers during machining. The result is a grade that cuts fast, produces short manageable chips instead of long stringy ones, and is noticeably easier on tooling. The tradeoff is that those same sulfur inclusions slightly compromise corrosion resistance and make the material a poor candidate for welding, since the sulfur can cause cracking in the weld area.
304 has no sulfur addition and instead relies on its straightforward chromium-nickel composition (typically around 18% chromium, 8% nickel) for a clean balance of corrosion resistance, weldability, and formability. It doesn't machine as easily as 303, since without the sulfur inclusions it tends to produce longer, stringier chips and work-harden more during cutting, but it's the far better choice for anything welded, formed, or exposed to a corrosive environment.
Same stainless family, one grade optimized for the machine, the other optimized for everything else.

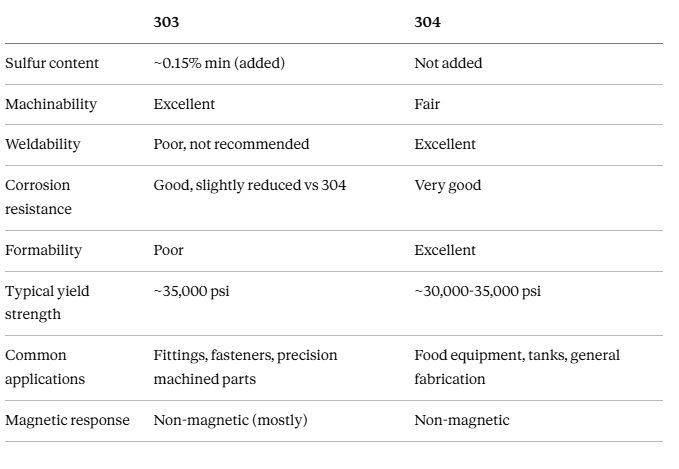

Key properties at a glance
When 303 is the right call
The part is primarily machined, not welded or formed. Fittings, shafts, screws, nuts, and precision components that go straight from bar stock to a lathe or mill benefit enormously from 303's free-machining properties. Faster cutting speeds, better tool life, and cleaner chip formation all translate to real cost and time savings in production.
Tight tolerances and a good surface finish matter. Because 303 machines so predictably, it's easier to hold tight tolerances and achieve a clean finish without fighting the material the way you sometimes do with tougher, more ductile grades.
High-volume machined production. If you're running a lot of parts through a CNC lathe or screw machine, 303's machinability advantage compounds across every single part, less tool wear, faster cycle times, fewer interruptions.
When 304 is the right call
The part gets welded. This is the clearest dividing line between these two grades. 304 welds cleanly and predictably. 303's sulfur content makes it prone to hot cracking during welding, and it's generally not recommended for welded assemblies at all.
Corrosion resistance is a priority. Food service equipment, kitchen fixtures, medical equipment, and outdoor or wet-environment applications all lean on 304's stronger, more consistent corrosion resistance compared to 303's slightly compromised version.
The part needs to be formed, bent, or drawn. 304's better ductility makes it the far better choice for sheet metal work, stamped parts, and anything that needs to be bent or drawn into shape without cracking.
You want the more broadly trusted, general-purpose stainless. When in doubt and the application doesn't specifically call for heavy machining, 304 is the safer default across a wider range of uses.
How to tell them apart without a spec sheet
Check the intended use, if you know it. A precision-machined fitting or fastener is more likely to be 303. A welded tank, food service part, or formed sheet component is more likely to be 304.
Look at the chip if it's already been machined. 303 tends to leave short, broken chips from prior machining operations. 304 tends to leave longer, curled, stringier chips.
A spark test is unreliable here. Both grades are austenitic stainless and produce similar spark patterns, this isn't a good way to distinguish between them the way it can help with carbon vs. alloy steels.
When truly unsure, ask the supplier for the mill cert. Since these two grades look and feel nearly identical, the chemistry breakdown on a mill cert is the most reliable way to confirm which one you actually have.
303 and 304 vs other common grades
303 vs 304, cost difference: These two are generally close in price, with 303 sometimes running slightly higher due to the added alloying and machining-grade processing, though pricing can vary by supplier and form.
304 vs 316: 316 stainless adds molybdenum for meaningfully better corrosion resistance, particularly against chlorides and marine environments. 304 is sufficient for most general applications, but 316 is the upgrade path when the environment is genuinely more aggressive, like coastal or chemical exposure.
303 vs 416: 416 is another free-machining stainless, but it's a martensitic grade that can be heat treated for higher hardness, unlike 303. 416 is the choice when a machined part also needs to be hardened; 303 is the choice when machinability alone is the priority.
Buying 303 or 304 as remnants
Both grades show up in remnant inventory, and the same logic applies as with other grade pairs: a remnant carries identical chemistry and properties to a fresh-cut piece, just in a leftover size.
For 303 remnants, since it's almost always used for machined parts, check that the remnant's diameter and length actually fit your part's dimensions with enough stock to machine down safely.
For 304 remnants, especially sheet or plate, check the surface condition if the finished part will be visible or food-contact, since 304's appeal often includes its clean, corrosion-resistant surface, not just its structural properties.
The mistake we see most often
Shops sometimes default to 304 for everything stainless, including parts that are purely machined, out of habit or because it's the more commonly stocked grade. That means slower cutting speeds, more tool wear, and longer cycle times than necessary. Less commonly, the opposite mistake happens, specifying 303 for a part that ends up needing a weld added later, which then becomes a real problem given 303's poor weldability.
The fix is the same as always: match the grade to how the part is actually made and what it needs to survive, not to which one happens to be sitting on the shelf.
A quick gut-check before you order
Is this part primarily machined from bar stock? If yes, 303 is worth strong consideration.
Will this part be welded at any point? If yes, go 304, don't risk 303's poor weldability.
Does it need to be formed, bent, or drawn? 304's ductility makes it the better choice.
Is corrosion resistance in a demanding environment the top priority? 304 (or 316 for more aggressive environments) is the safer call.
